关于 Web 服务

Adobe Campaign API的定义

Adobe Campaign应用程序服务器旨在实现与日益多样化和复杂的公司信息系统的开放和轻松集成。

Adobe Campaign API用在应用程序内的JavaScript中以及该应用程序外的SOAP中。 它们构成了可扩充的通用函数库。 有关详细信息,请参阅 实现SOAP方法.

重要

每天授权的引擎呼叫次数因您的许可协议而异。 有关详细信息,请参见此页面
所有API的列表(包括其完整说明),请参见 本专述文档

先决条件

在使用Adobe Campaign API之前,您需要熟悉以下主题:

  • Javascript
  • SOAP协议
  • Adobe Campaign数据模型

使用Adobe Campaign API

Adobe Campaign使用两种类型的API:

  • 用于查询数据模型数据的通用数据访问API。 请参阅 面向数据的API.
  • 允许您对每个对象执行操作的特定于业务的API:投放、工作流、订阅等。 请参阅 面向业务的API.

要开发API并与Adobe Campaign进行交互,您需要熟悉数据模型。 Adobe Campaign允许您生成基础的完整说明。 请参阅 模型描述.

SOAP调用

SOAP协议允许您通过富客户端、使用Web服务的第三方应用程序或本地使用这些方法的JSP来调用API方法。

SOAP消息的结构如下:

  • 一个信封,它定义了信息的结构,
  • 可选标题,
  • 包含呼叫和响应信息的主体,
  • 定义错误条件的错误管理。

资源和交流

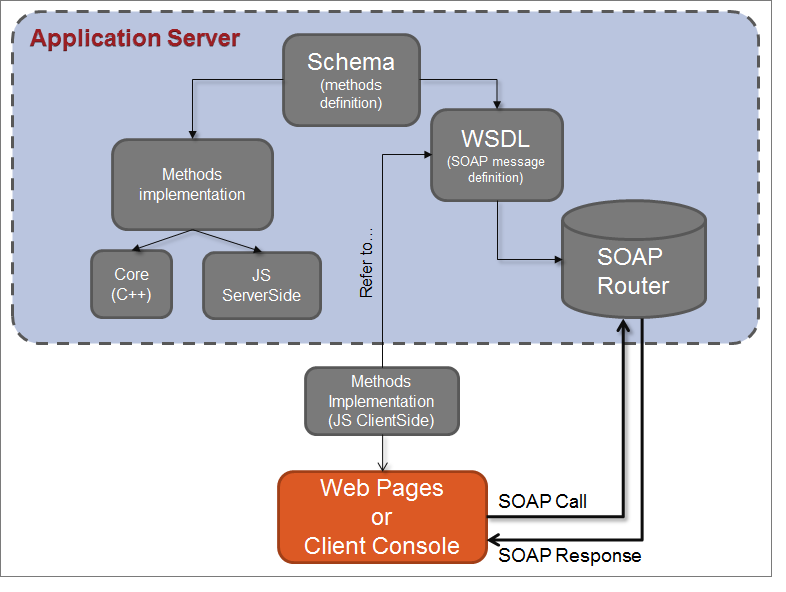

以下架构显示了使用Adobe Campaign API时涉及的各种资源:

关于“ExecuteQuery”方法的SOAP消息示例

在此示例中,SOAP查询调用“ExecuteQuery”方法,该方法将字符串作为身份验证(会话令牌)的参数,以及要执行的查询描述的XML内容。

For further information, refer to ExecuteQuery (xtk:queryDef).

注意

The WSDL description of this service is completed in the example shown here: Web service description: WSDL.

SOAP query

<?xml version='1.0' encoding='ISO-8859-1'?>
  <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
    <SOAP-ENV:Body>
      <ExecuteQuery xmlns='urn:xtk:queryDef' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
        <__sessiontoken xsi:type='xsd:string'/>
        <entity xsi:type='ns:Element' SOAP-ENV:encodingStyle='http://xml.apache.org/xml-soap/literalxml'>
          <queryDef firstRows="true" lineCount="200" operation="select" schema="nms:rcpGrpRel" startLine="0" startPath="/" xtkschema="xtk:queryDef">
          ...
          </queryDef>
        </entity>
      </ExecuteQuery>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

<soap-env:envelope> 元素是表示SOAP封套的消息的第一个元素。

<soap-env:body> 元素是封套的第一个子元素。 它包含消息的描述,即查询或响应的内容。

将在 <executequery> 元素。

在SOAP中,参数是按外观顺序识别的。 第一个参数, <__sessiontoken>,获取身份验证链,第二个参数是 <querydef> 元素。

SOAP响应

<?xml version='1.0' encoding='ISO-8859-1'?>
  <SOAP-ENV:Envelope xmlns:xsd='http://www.w3.org/2001/XMLSchema' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:ns='http://xml.apache.org/xml-soap' xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
    <SOAP-ENV:Body>
      <ExecuteQueryResponse xmlns='urn:xtk:queryDef' SOAP-ENV:encodingStyle='http://schemas.xmlsoap.org/soap/encoding/'>
        <pdomOutput xsi:type='ns:Element' SOAP-ENV:encodingStyle='http://xml.apache.org/xml-soap/literalxml'>
          <rcpGrpRel-collection><rcpGrpRel group-id="1872" recipient-id="1362"></rcpGrpRel></rcpGrpRel-collection>
        </pdomOutput>
      </ExecuteQueryResponse>
    </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

查询的结果从 <pdomoutput> 元素。

错误管理

SOAP错误响应示例:

<?xml version='1.0' encoding='ISO-8859-1'?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV='http://schemas.xmlsoap.org/soap/envelope/'>
  <SOAP-ENV:Body>
    <SOAP-ENV:Fault>
      <faultcode>SOAP-ENV:Server</faultcode>
      <faultstring>Error while executing 'Write' of the 'xtk:persist'.</faultstring> service
      <detail>ODBC error: [Microsoft][ODBC SQL Server Driver][SQL Server]Cannot insert duplicate key row in object 'XtkOption' with unique index 'XtkOption_name'. SQLSTate: 23000
ODBC error: [Microsoft][ODBC SQL Server Driver][SQL Server]The statement has been terminated. SQLSTate: 01000 Cannot save the 'Options (xtk:option)' document </detail>
    </SOAP-ENV:Fault>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>

<soap-env:fault> SOAP消息正文中的元素用于传送在web服务处理期间产生的错误信号。 这由以下子元素组成:

  • <faultcode> :指示错误类型。 错误类型包括:

    • 如果与使用的SOAP版本不兼容,则为“版本不匹配”;
    • 如果消息标头中出现问题,则为“必须了解”,
    • "Client" in the event that the client is missing some information,
    • 如果服务器在执行处理时遇到问题,则为“服务器”。
  • <faultstring> :描述错误的消息

  • <detail> :长错误消息

服务调用的成功或失败在 <faultcode> 元素已验证。

重要

所有Adobe Campaign Web服务都处理错误。 因此,强烈建议对每个调用进行测试,以处理返回的错误。

C#中错误处理的示例:

try
{
  // Invocation of method
  ...
}
catch (SoapException e)
{
  System.Console.WriteLine("Soap exception: " + e.Message);
  if (e.Detail != null)
    System.Console.WriteLine(e.Detail.InnerText);
}

Web服务服务器(或EndPoint)的URL

要提交Web服务,必须联系实现相应服务方法的Adobe Campaign服务器。

服务器URL如下所示:

https://serverName/nl/jsp/soaprouter.jsp

使用 <server> Adobe Campaign应用程序服务器(nlserver web)。
